72112

Product Description

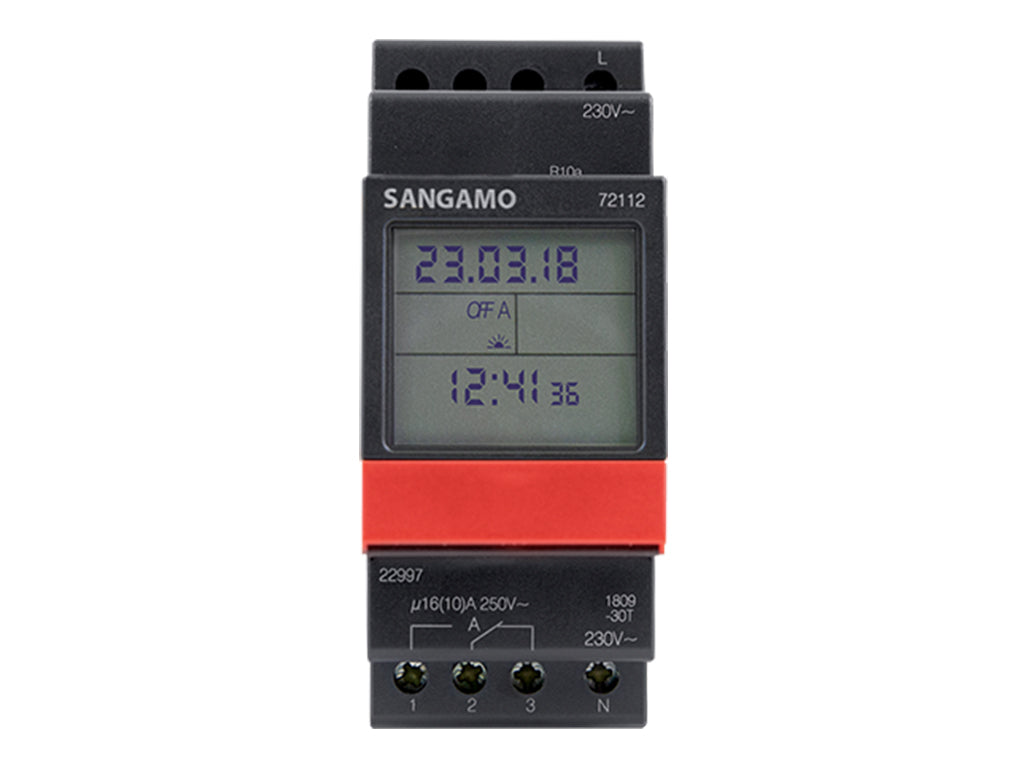

A two module wide, single channel, general purpose timer that is designed to control various loads (including LED lighting).Requires minimum time to set up.

Programme via your computer using Sangamo’s optional EasyVue Software software & the USB Hub (25195) or by Bluetooth using the Sangamo Connect Android App and Bluetooth USB Hub (25196). Both require a programming key (25193 – not supplied).

The 72112 is the replacement for the 23141, 23151 and 23161.

Automatic sorting of switching times on readout
Text based menu & self-explanatory symbols
Large, clear and illuminated display
Quick & intuitive programmable time switch
Can be programmed with supply disconnected
Programmable by PC or Sangamo Connect Android App (additional accessory required)

Supply Voltage 230V, 50-60Hz
Power Consumption 0.8-1.8W (depending on switching status)
Channel (volt-free) Change-over, contact gap
Contact Material AgCdO
Switching Capacity Per Channel 16A / 250V~ at cosφ=1 | 10A with inductive load cosφ=0.6
Min. Switching Power 500mW (10V/5mA)
Max. starting current 30A
Filament Lamp, Halogen Lamp 1,000W
Fluorescent Lamp with electron. lamp ballast 500W
Fluorescent Lamp with convent. lamp ballast 400W
LED (230V~)/CFL 300W
Switching Functions Astro ON; OFF; pulse
Pulse length 00:01 up to 59:59 mm:ss
Memory Locations 46
Minimum Interval 1min.
Time Base Quartz
Quartz Accuracy (at 20°C) ≦ ±0.5 sec/day (Quartz accuracy optimized for typical ambient conditions)
Power Back-up (at 20°C) approx. 10 years
Program Security Unlimited (E²-PROM)
Display High resolution LCD (visable area 7.5cm²)
Permitted Ambient Temperature -30°C to 55°C
Housing Self-extinguishing thermoplastic
Dimensions 45mm x 35mm x 58mm
Mounting 35mm DIN-Rail
Type of Connection Screw terminals (pull-up type)
Type of protection IP20 to DIN EN 60529
Class of Protection II (when installed according to regulations)
Mode of Operation (DIN EN 60730-1) 1BSTU
Degree of Contamination (DIN EN 60730-1) 2
Rated Surge Voltage (DIN EN 60730-1) 4kV
Certification Mark VDE

1 – Output (Load Ch. A) – Normally Open
2 – Input (Load Ch. A) – External link 2 to 8 if using a single 230Aac supply
3 – Not Used – Normally Closed Connection
4N – Neutral In (Clock)
8L – Live In (Clock)

Sangamo 72112 Wiring Diagram
