Product Description
£29.50
Maximum quantity available reached.
Sku: SKU23141

Product Description

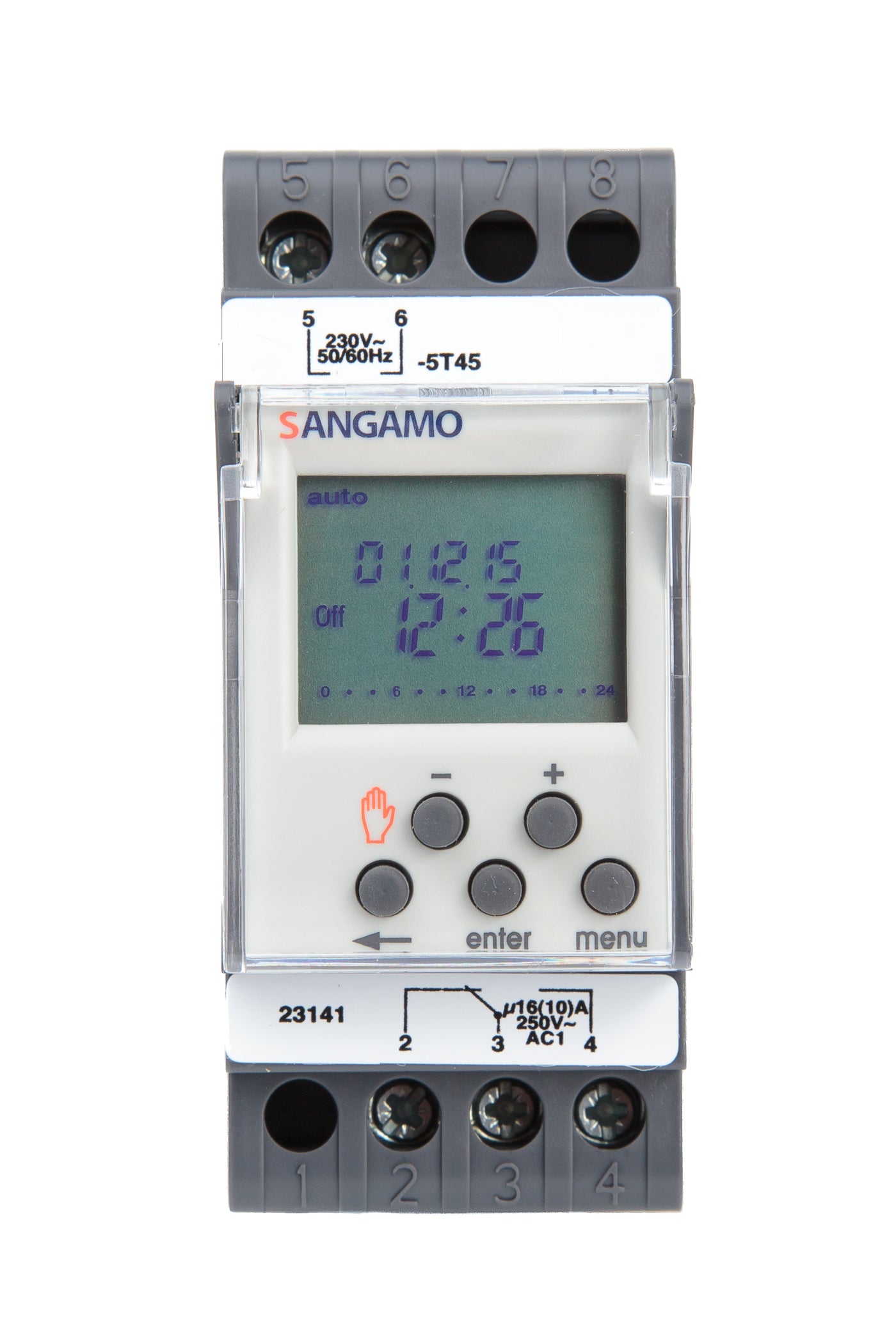

A two module wide, single channel, 7 day, general purpose timer that it is perfect for applications where space economy may be a factor. Requires minimum time to set up. They can be used also for lighting of hallways to buildings, garages, toilet ventilation etc.

A datakey is included to enable quick programming of multiple switches, to back up an existing units program or store another program schedule for occasional use.

** 1 year warranty from date of purchase **

Features

Max 56 program steps, may be allocated to individual/multiple or all days Automatic change of winter/summer time
Permanent/Timed/Temporary overrides
Display bar graph of daily profile
Can be programmed with supply disconnected

Specification

Supply voltage: 230 V AC +/-15%
Frequency: 50/60 Hz
Consumpton at 50/60 Hz: 6VA
Switching Capacity: 16A / 250V~ at cosφ=1 | 10A with inductive load cosφ=0.6
Halogen lamps: 2300W
Incandescent lamps: 2300W
Compensated fluo tubes // (max 45 μF): 400W
Non-compensated fluo tubes, compensated in series: 1000W
Compact fluo lamps: 500W
Electronic ballast: 8 x 58 W
Timekeeping Accuracy : 1sec/24hrs
Power reserve: Lithium battery with 5 years reserve
Protections index:  IP20
Operating temperature: -5 °C to 45°C
Storage temperature:  -20°C to 70°CConnection by cage terminals Capacity: flexible 1 to 6 mm2

Wiring

1  Not fitted
2  Not used            Normally closed connection
3  Input (Load)       External link 3 to 6 if using a single 230Vac supply
4  Output (Load)    Normally open connection
5  Neutral
6  Live In (Clock)
7  Not fitted
8  Not fitted
