Standard Panel 16922

Product Description
£43.58
Maximum quantity available reached.
Sku: 16922

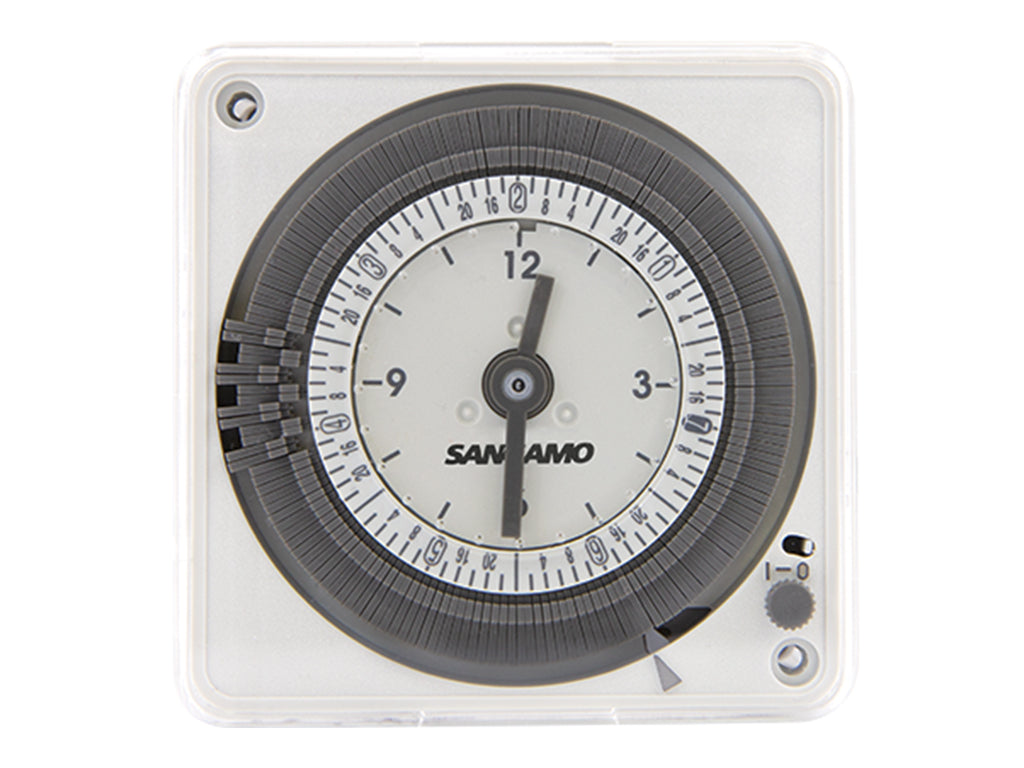

A very simple to use and cost effective general purpose timer, that is ideal for many applications. An optional panel mount kit is available for when the back box provided is not suitable.

Manual override with automatic return to program. Contact status display
7 day programming by captive segments.
Terminals in housing which opens for easy wiring.
Voltage free 16A changeover contact
Surface, Panel or Din rail mounting

Supply Voltage 230V, +10% -15%, 50/60 Hz
Power Consumption approx. 0.5VA
Channel (volt-free) Change-over
Switching Capacity 16A resistive (3A voltage free inductive)
Incandescent Lamp Halogen Lamp 1,000W
Squirrel-cage Motor 350W
Time Base Quartz
Quartz Accuracy (at 20°C) ≦ 1 sec/day
Permitted Operating Temperature -10°C to 50°C
Permitted Ambient Temperature -20°C to 60°C
Dimensions 72mm x 72mm (to IEC 61554)
Connection by cage terminals, section of conductors 1 to 6mm2
Type of protection IP20 to DIN EN 60529
Class of Protection II (when installed according to regulations)
Mode of Operation BS EN 60730

  1. Neutral
  2. Live In (Clock)
  3. Not used – Normally Closed connection
  4. Input (Load) – External link 2 to 4 if using a single 230Vac supply
  5. Output (Load) – Normally Open connection

Sangamo 16621 Wiring Diagram
