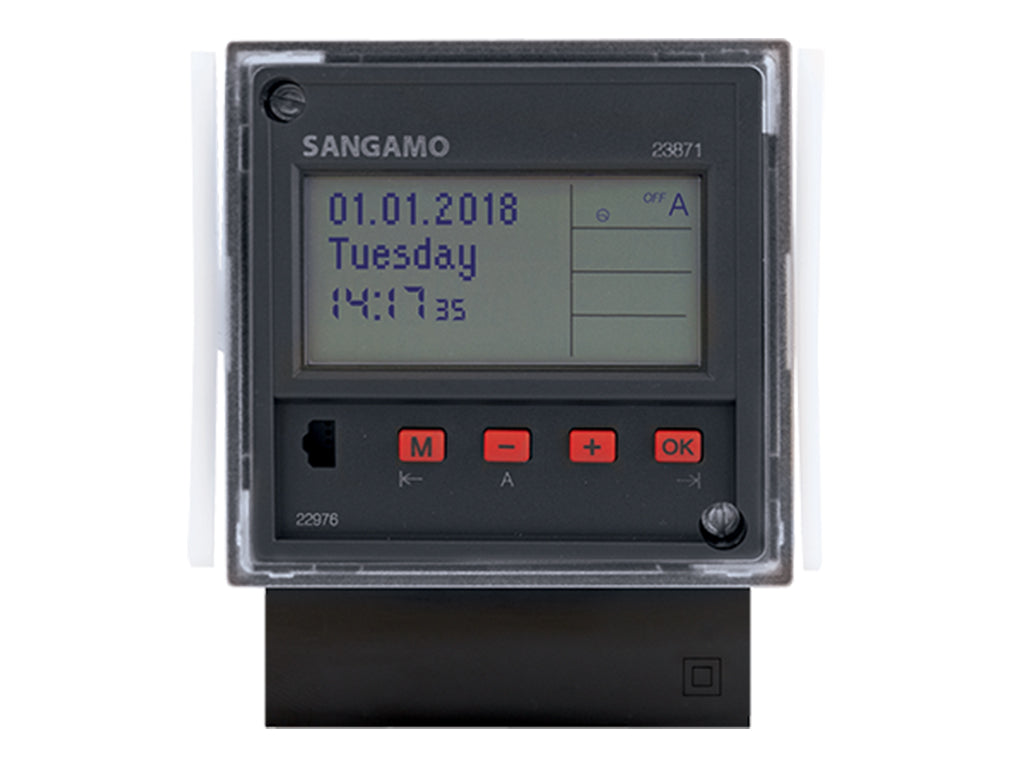

A general purpose panel mounted time switch that offers good functionality along with the flexibility of its mounting options making it an ideal choice for many applications. The key programming feature enables away from site programming and uniform programming of multiple locations. Text based menu system and self explanatory symbols displayed on a large, back-lit dot matrix area to provide two high resolution text lines. Pulse programming allows you to set small bursts (e.g. school bells) in 1 second steps.

The 23871 can be extremely quick and easy to program, it can be programmed with supply disconnected and has the ability to program via your computer using Sangamo’s optional Easy Vue software and USB link (25195 – not supplied) and backed up or transferred via a programming key (25193 – not supplied).

Can be mounted on a panel, surface or DIN rail (95587 Mounting Kit required) making this an adaptable timer for a variety of situations.

The 23871 can be extremely quick and easy to program thanks to the ability to program via your computer using Sangamo’s optional EasyVue software & the USB Hub (25195) or by Bluetooth using the Sangamo Connect Android App and Bluetooth USB Hub (25196).

Automatic sorting of switching times on readout
Text based menu & self-explanatory symbols
Display with Large dot matrix area to provide two high resolution text lines
Quick & intuitive programmable time switch
Elapsed time and pulse counter
Programmable by PC or Sangamo Connect Android App (additional accessory required)

Supply Voltage 230V, 50-60Hz
Power Consumption 0.5-1.2W (depending on switching status)
Channel (volt-free) Change-over, contact gap
Contact Material AgNi
Switching Capacity Per Channel 16A / 250V~ at cosφ=1 | 10A with inductive load cosφ=0.6
Min. Switching Power 300mW (5V/5mA)
Max. starting current 30A
Filament Lamp, Halogen Lamp 400W
Fluorescent Lamp with electron. lamp ballast 100W
Fluorescent Lamp with convent. lamp ballast 100W
LED (230V~)/CFL 50W
Switching Functions ON; OFF; pulse
Pulse length Pulse function 00:01 up to 59:59 mm:ss
Memory Locations 46
Minimum Interval 1min.
Time Base Quartz
Quartz Accuracy (at 20°C) ≦ ±0.5 sec/day (Quartz accuracy optimized for typical ambient conditions)
Power Back-up (at 20°C) approx. 10 years
Program Security Unlimited (E²-PROM)
Display High resolution LCD (visable area 7.5cm²)
Permitted Ambient Temperature -30°C to 55°C
Housing Self-extinguishing thermoplastic
Dimensions 72mm x 72mm (to IEC 61554)
Mounting Panel and wall
Type of Connection Screw terminals
Type of protection IP20 to DIN EN 60529
Class of Protection II (when installed according to regulations)
Mode of Operation (DIN EN 60730-1) 1BSTU
Degree of Contamination (DIN EN 60730-1) 2
Rated Surge Voltage (DIN EN 60730-1) 4kV
Certification Mark VDE

  1. Not Used – Normally Closed connection
  2. Output (Load) – Normally Open connection
  3. Input (Load) – External link 3 to 5 if using a single 230V ac supply
  4. Neutral In (Clock)
  5. Live In (Clock)

Sangamo 23871 Wiring Diagram
