Standard DIN 25162

Product Description
£209.47
Maximum quantity available reached.
Sku: 25162

Sangamo Five Year GuaranteeUp to 200W of LED

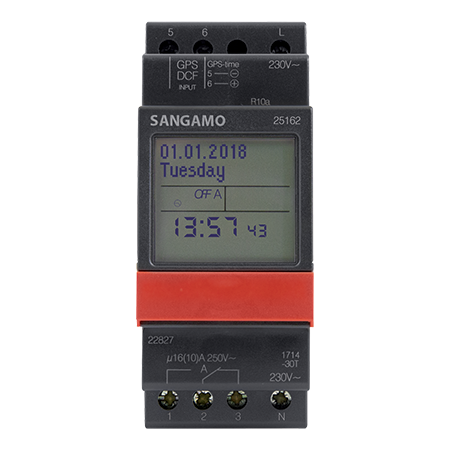

A 365 day, single channel, solar din rail yearly time switch. Yearly programming with Easter function, Weekday function and Extra-switching function. Text based menu system and self explanatory symbols displayed on a large, backlit dot matrix area to provide two high resolution text lines. Pulse programming allows you to set small bursts (e.g. school bells) in 1 second steps.

The 25162 can be extremely quick and easy to program thanks to the ability to program via your computer using Sangamo’s optional EasyVue software & the USB Hub (25195) or by Bluetooth using the Sangamo Connect Android App and Bluetooth USB Hub (25196)

Full 365 day programming
Text based menu & self-explanatory symbols
Display with Large dot matrix area to provide two high resolution text lines
Automatic sorting of switching times on readout
Can be programmed with supply disconnected
Programmable by PC or Sangamo Connect Android App (additional accessory required)

Supply Voltage 230V, 50-60Hz
Power Consumption 1.4-1.9W (depending on switching status)
Channel (volt-free) Change-over, contact gap
Contact Material AgSnO²
Switching Capacity Per Channel 16A / 250V~ at cosφ=1 | 10A with inductive load cosφ=0.6
Min. Switching Power 1,000mW (10V/10mA)
Max. starting current 50A
Filament Lamp, Halogen Lamp 2,000W
Fluorescent Lamp uncompensated 1,000VA
Fluorescent Lamp series compensated 1,000VA
Fluorescent Lamp parallel compensated 550VA
LED (230V~)/CFL 200W
Switching Functions Astro ON; OFF; pulse; cycle; yearly program
Pulse length Pulse function 00:01 up to 59:59 mm:ss
Pulse length Timer 0:00:01 up to 9:59:59 h:mm:ss
Pulse/Pause length Cycle 0:00:01 up to 9:59:59 h:mm:ss
Memory Locations 300
Minimum Interval 1min.
Time Base Quartz or DCF/GPS (requires additional accessory)
Quartz Accuracy (at 20°C) ≦ ±0.5 sec/day (Quartz accuracy optimized for typical ambient conditions)
Power Back-up (at 20°C) approx. 10 years
Program Security Unlimited (E²-PROM)
Display High resolution LCD (visable area 7.5cm²)
Permitted Ambient Temperature -30°C to 55°C
Housing Self-extinguishing thermoplastic
Dimensions 45mm x 35mm x 58mm
Mounting 35mm DIN-Rail
Type of Connection Screw terminals (pull-up type)
Type of protection IP20 to DIN EN 60529
Class of Protection II (when installed according to regulations)
Mode of Operation (DIN EN 60730-1) 1BSTU
Degree of Contamination (DIN EN 60730-1) 2
Rated Surge Voltage (DIN EN 60730-1) 4kV
Certification Mark VDE

1 – Output (Load) – Normally Open connection
2 – Input (Load) – External link 2 to 8 if using a single 230Vac supply
3 – Not Used – Normally Closed Connection
4N – Neutral In (Clock)
5 – DCF – GPS Radio Clock accessory
6 – DCF – GPS Radio Clock accessory
7 – Not Fitted
8L – Live In (Clock)

Sangamo 25162 Wiring Diagram
