Product Description

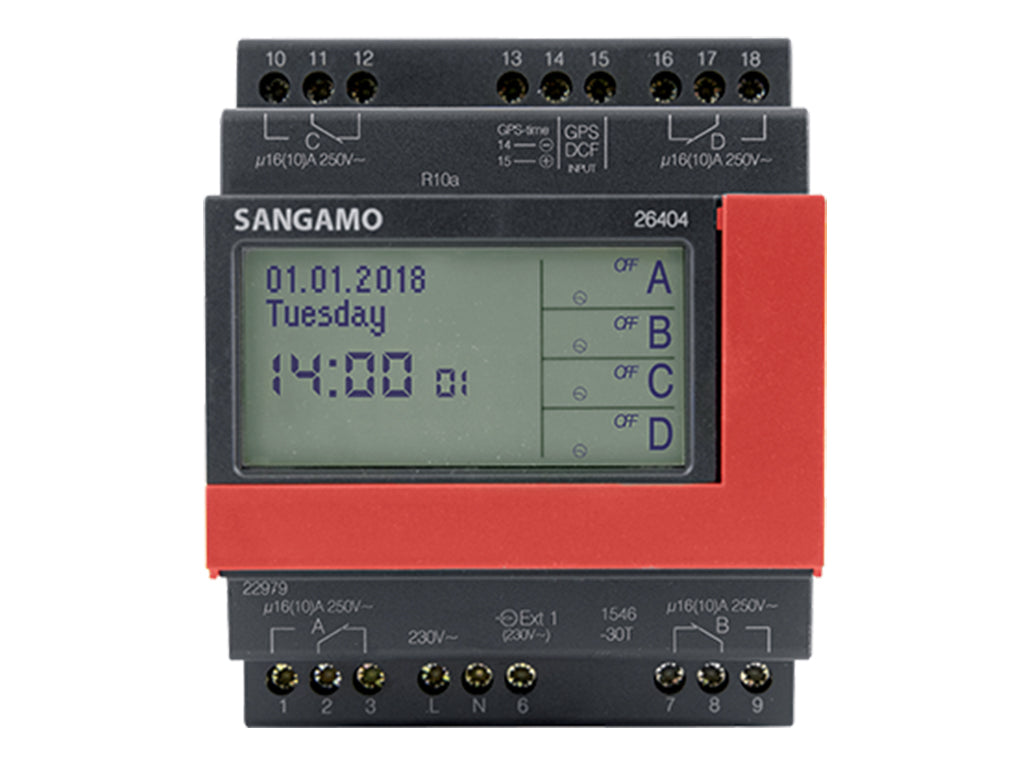

A general purpose 4 channel time switch that it is ideal for multi channel applications where independent control of individual circuits are required. The key programming feature enables away from site programming and uniform programming of multiple locations.

Text based menu system and self explanatory symbols displayed on a large, back-lit dot matrix area to provide two high resolution text lines. Pulse programming allows you to set small bursts (e.g. school bells) in 1 second steps.

The 26404 can be extremely quick and easy to program thanks to the ability to program via your computer using Sangamo’s optional EasyVue software & the USB Hub (25195) or by Bluetooth using the Sangamo Connect Android App and Bluetooth USB Hub (25196). Both require a programming key (25193 – not supplied).

4 channel timer with 300 memory slots
Text based menu & self-explanatory symbols
Display with Large dot matrix area to provide two high resolution text lines
Quick & intuitive programmable time switch
Can be programmed with supply disconnected
Programmable by PC or Sangamo Connect Android App (additional accessory required)

Supply Voltage 230V, 50-60Hz
Power Consumption 1.2-3.2W (depending on switching status)
Channel (volt-free) Change-over, contact gap
Contact Material AgSnO²
Switching Capacity Per Channel 16A / 250V~ at cosφ=1 | 10A with inductive load cosφ=0.6
Min. Switching Power 1,000mW (10V/10mA)
Max. starting current 50A
Filament Lamp, Halogen Lamp 2,000W
Fluorescent Lamp uncompensated 1,000VA
Fluorescent Lamp series compensated 1,000VA
Fluorescent Lamp parallel compensated 550VA
LED (230V~)/CFL 200W
Switching Functions Astro ON; OFF; pulse; cycle
Pulse length Pulse Timer 00:01 up to 59:59 mm:ss
Pulse length Timer 0:00:01 up to 9:59:59 h:mm:ss
Pulse/Pause length Cycle 0:00:01 up to 9:59:59 h:mm:ss
Memory Locations 300
Minimum Interval 1min.
Time Base Quartz
Quartz Accuracy (at 20°C) ≦ ±0.5 sec/day (Quartz accuracy optimized for typical ambient conditions)
Power Back-up (at 20°C) approx. 10 years
Program Security Unlimited (E²-PROM)
Display High resolution LCD (visable area 12.8cm²)
Permitted Ambient Temperature -30°C to 55°C
Housing Self-extinguishing thermoplastic
Dimensions 45mm x 71.5mm x 58mm
Mounting 35mm DIN-Rail
Type of Connection Screw terminals (pull-up type)
Type of protection IP20 to DIN EN 60529
Class of Protection II (when installed according to regulations)
Mode of Operation (DIN EN 60730-1) 1BSTU
Degree of Contamination (DIN EN 60730-1) 2
Rated Surge Voltage (DIN EN 60730-1) 4kV
Certification Mark VDE

  1. Output (Load Ch. A) – Normally Open connection
  2. Input (Load Ch. A) – External link 2 to 4 if using a single 230Vac supply
  3. Not Used – Normally Closed connection
  4. Live In (Clock)
  5. Neutral In (Clock)
  6. Live Ext. 1 – 230V external input connection (for remote switching)
  7. Not Used – Normally Closed connection
  8. Input (Load Ch. B) – External link 8 to 4 if using a single 230Vac supply
  9. Output (Load Ch. B) – Normally Open connection
  10. Output (Load Ch. C) – Normally Open connection
  11. Input (Load Ch. C) – External link 11 to 4 if using a single 230Vac supply
  12. Not Used – Normally Closed connection
  13. Live Ext. 2 – Volt free external input connection (for remote switching)
  14. DCF – GPS Radio Clock accessory (Sangamo do not supply)
  15. DCF – GPS Radio Clock accessory (Sangamo do not supply)
  16. Not Used – Normally Closed connection
  17. Input (Load Ch. D) – External link 17 to 4 if using a single 230Vac supply
  18. Output (Load Ch. D) – Normally Open connection

Sangamo 26404 Wiring Diagram
