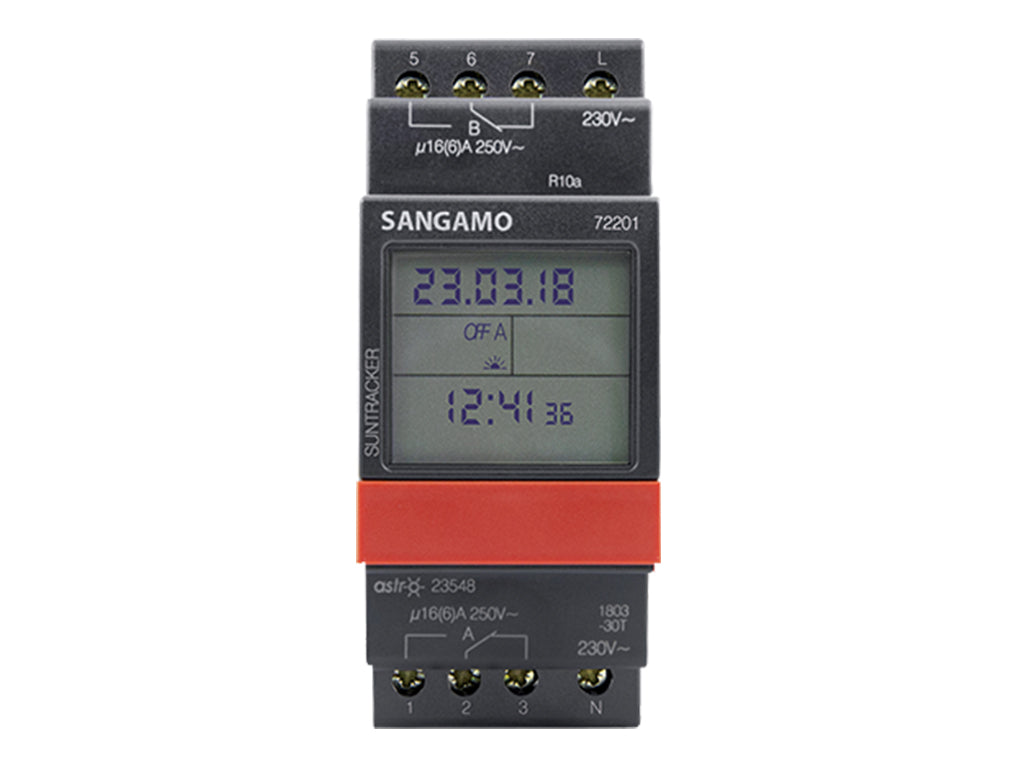

Suntracker DIN 72201

Product Description
£102.00
Maximum quantity available reached.
Sku: 72201

Sangamo Five-Year GuaranteeAstro SuntrackerUp To 400W LED

A two module wide, two channel, general purpose astronomical timer that it is designed to control various loads (including LED lighting) automatically according to sunrise and sunset times. Examples of applications: street lighting, neon signs, festive lighting, store windows, monuments, frontages, etc. The unit contains many features to provide a flexible solution. A mix of Astro or Standard times may be programmed.

Requires minimum time to set up and includes an optional Astro pre-programmed setting. A datakey (not included) is available to enable quick programming of multiple switches, to back up an existing units program or store another program schedule for occasional use. This datakey can also be programmed via your computer using Sangamo’s optional EasyVue Software.

Astro Program (Suntracker) tracks sunset to sunrise
Text based menu & self-explanatory symbols
Display with Large dot matrix area to provide two high resolution text lines
Quick & intuitive programmable time switch
Can be programmed with supply disconnected
Programmable by PC or Sangamo Connect Android App (additional accessory required)

Supply Voltage 230V, 50-60Hz
Power Consumption 0.8-1.8W (depending on switching status)
Channel (volt-free) Change-over, contact gap
Contact Material AgSnO²
Switching Capacity Per Channel 16A / 250V~ at cosφ=1 | 10A with inductive load cosφ=0.6
Min. Switching Power 1,000mW (10V/10mA)
Max. starting current 50A
Filament Lamp, Halogen Lamp 2,000W
Fluorescent Lamp with electron. lamp ballast 1,000W
Fluorescent Lamp with convent. lamp ballast 750W
LED (230V~)/CFL 400W
Switching Functions Astro ON/OFF; Night ON/OFF; Extra ON/OFF
Offset Astro Switching Time +/- 90min.
Memory Locations 60
Minimum Interval 1min.
Time Base Quartz
Quartz Accuracy (at 20°C) ≦ ±0.5 sec/day (Quartz accuracy optimized for typical ambient conditions)
Power Back-up (at 20°C) approx. 10 years
Program Security Unlimited (E²-PROM)
Display High resolution LCD (visable area 7.5cm²)
Permitted Ambient Temperature -30°C to 50°C
Housing Self-extinguishing thermoplastic
Dimensions 45mm x 17.5mm x 58mm
Mounting 35mm DIN-Rail
Type of Connection Screw terminals (pull-up type)
Type of protection IP20 to DIN EN 60529
Class of Protection II (when installed according to regulations)
Mode of Operation (DIN EN 60730-1) 1BSTU
Degree of Contamination (DIN EN 60730-1) 2
Rated Surge Voltage (DIN EN 60730-1) 4kV
Certification Mark VDE

1 – Output (Load) – Normally Open
2 – Input (Load) – External link 2 to 8 if using a single 230Aac supply
3 – Not Used – Normally Closed Connection
4N – Neutral In (Clock)
5 – Output (Load) – Normally Open Connection
6 – Input (Load) – External link 6 to 8 if using a single 230Vac supply
8L – Live In (Clock)

Sangamo 72201 Wiring Diagram
