Standard DIN 11002

Product Description
£43.20
Maximum quantity available reached.
Sku: 11002

Sangamo Five Year Guarantee

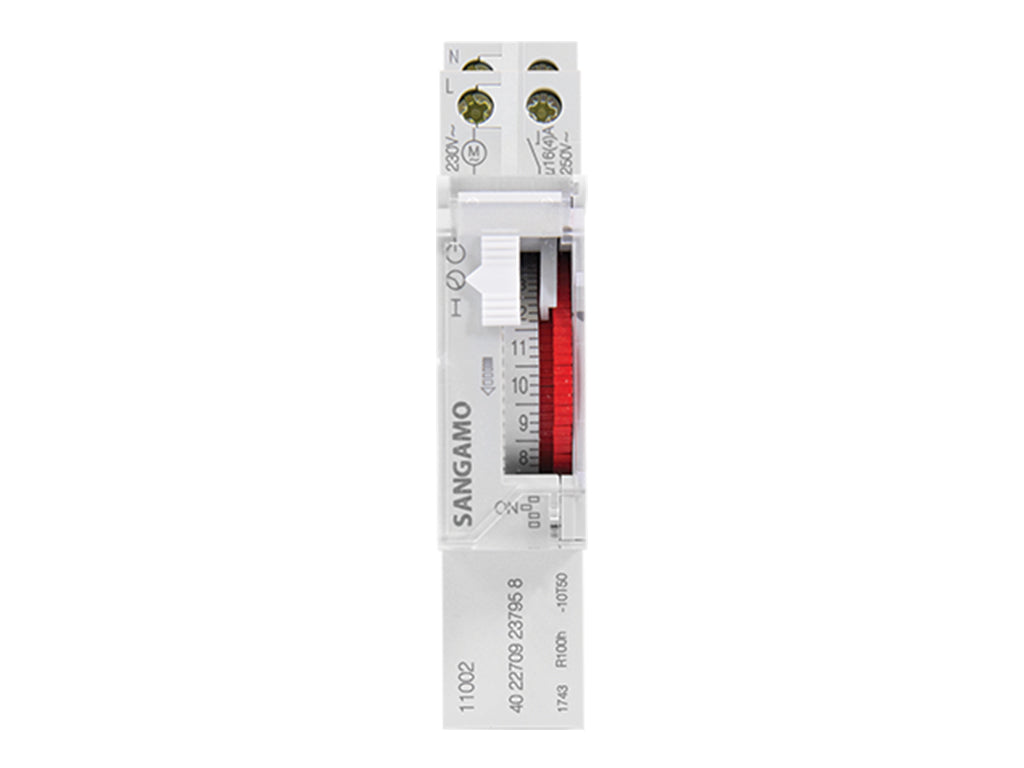

A one module wide general purpose, 24 hour, analogue timer that it is perfect for applications where space economy may be a factor. Requires minimum time to set up. They can be used for lighting, heating, ventilation, motor control, pump control, machinery control, etc...

Easy programming with captive setting keys
Easy to read switching
Manual override switch "Permanent OFF/Automatic/Permanent ON"
Daily Program
100 hour battery reserve

Supply Voltage 230V, 50-60Hz
Power Consumption 0.4W
Channel (volt-free) Change-over, contact gap
Contact Material AgCdO
Switching Capacity 16A / 250V~ at cosφ=1 | 2.5A with inductive load cosφ=0.6
Min. Switching Power 1,000mW (10V/10mA)
Filament Lamp, Halogen Lamp 2,000W
Fluorescent Lamp uncompensated 1,000W
Fluorescent Lamp series compensated 750W
LED (230V~)/CFL 200W
Minimum Interval 15 min.
Quartz Accuracy (at 20°C) ≦ ±1 sec/day
Power Back-up (at 20°C) approx. 100 hours
Program Security Unlimited (E²-PROM)
Permitted Ambient Temperature -5°C to 50°C
Housing Self-extinguishing thermoplastic
Mounting 35mm DIN-Rail
Type of protection IP20 to DIN EN 60529
