23142

Product Description
£49.00
Maximum quantity available reached.
Sku: SKU23142

Product Description

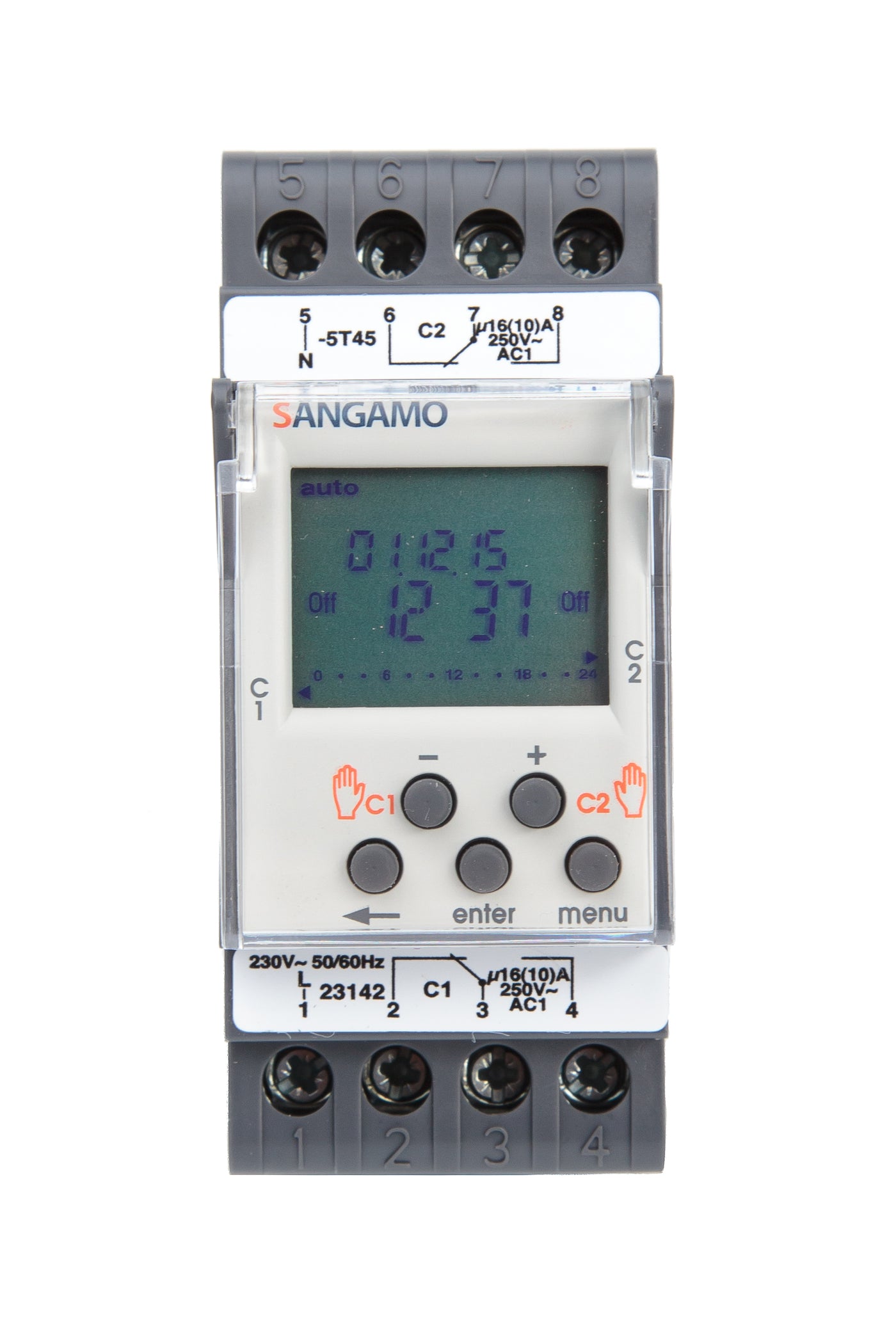

A two module wide, two channel, 7 day, general purpose timer that it is perfect for applications where space economy may be a factor. Requires minimum time to set up. They can be used also for lighting of hallways to buildings, garages, toilet ventilation etc.

A datakey is included to enable quick programming of multiple switches, to back up an existing units program or store another program schedule for occasional use.

Features

Max 56 program steps per product, may be allocated to individual/multiple or all days Automatic change of winter/summer time
Permanent/Timed/Temporary overrides
Display bar graph of daily profile
Can be programmed with supply disconnected

Specification

Supply voltage: 230 V AC +/-15%
Frequency: 50/60 Hz
Consumption at 50/60 Hz: 6VA
Switching Capacity per channel : 16A / 250V~ at cosφ=1 | 10A with inductive load cosφ=0.6
Halogen lamps: 2300W
Incandescent lamps: 2300W
Compensated fluo tubes // (max 45 μF): 400W
Non-compensated fluo tubes, compensated in series: 1000W
Compact fluo lamps: 500W
Electronic ballast: 8 x 58 W
Timekeeping Accuracy : 1sec/24hrs
Power reserve: Lithium battery with 5 years reserve
Protections index:  IP20
Operating temperature: -5 °C to 45°C
Storage temperature:  -20°C to 70°C
Connection by cage terminals Capacity: flexible 1 to 6 mm2

Wiring

1  Live In (Clock)              External link to common up live inputs as 230V if reqd.
2  Not Used                      Normally closed connection
3  Input (Load CH1)         External link 3 to 1 if using a single 230Vac
4  Output (Load CH1)       Normally open connection
5  Neutral
6  Not Used                      Normally closed connection
7  Input (Load CH2)          External link 7 to 1 if using a single 230Vac supply
8  Output (Load CH2)       Normally open connection
